A Limited Collection of Piano Rebuilding Photos A few of the many procedures in a complete rebuild 1913 5' 4" Knabe Grand Piano Courtesy of Gene Nelson RPT (all rights reserved)
|

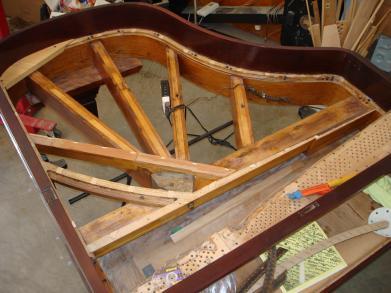

Piano case being prepared for new soundboard |
![](gallery/case_for_board.jpg)
|

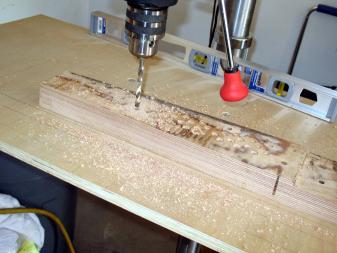

New tuning pinbloack being drilled |
![](gallery/drill_block.jpg)
|

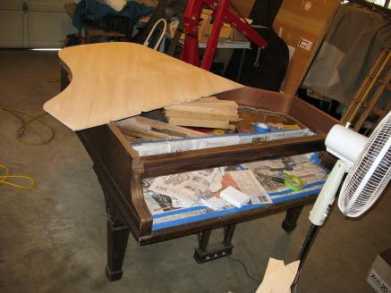

Fitting the new soundboard panel to the case |
![](gallery/fitting_board1.jpg)
|

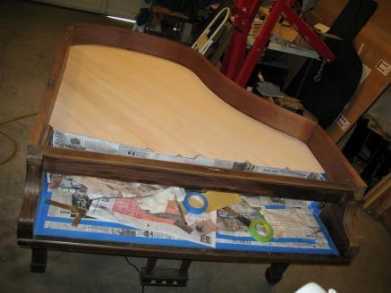

Another image of fitting the new soundboard panel to the case |
![](gallery/fitting_board.jpg)
|

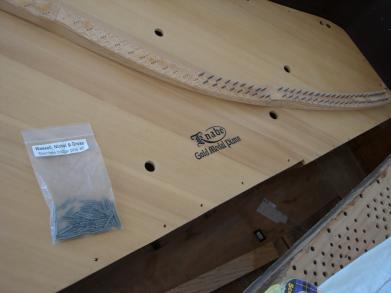

Installing bridge pins |
![](gallery/bridge_pins2.jpg)
|

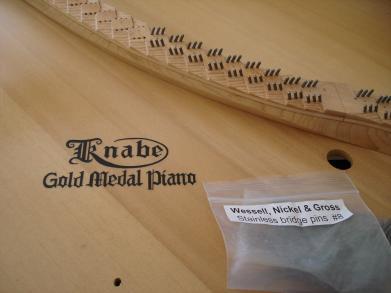

Another image of installing bridge pins |
![](gallery/bridge_pins.jpg)
|

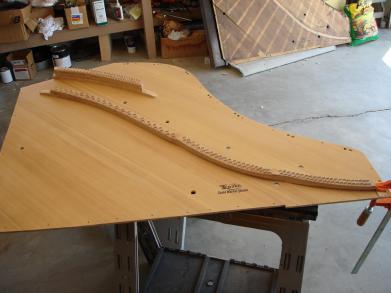

The completed new soundboard and bridges |
![](gallery/new_board_bridge.jpg)
|

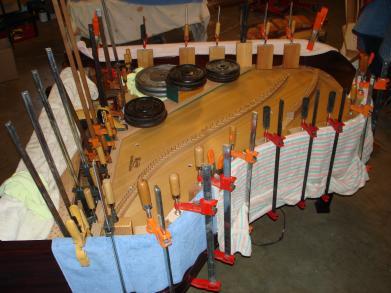

Glueing in the new soundboard |
![](gallery/board_glue_in.jpg)
|

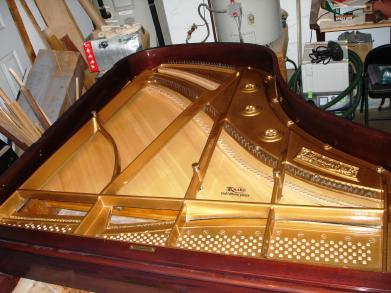

Soundboard and plate (harp) are now installed and the piano is ready for stringing |
![](gallery/string_ready.jpg)
|

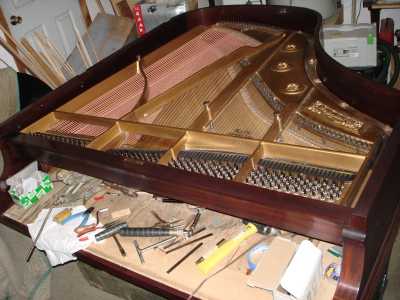

Installing wew strings on the piano has been completed
|
![](gallery/restrung.jpg)
|

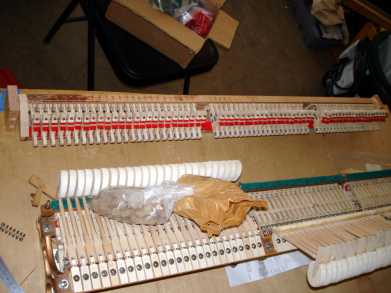

New damper underlever assembly (aft) and action stack with new action parts and hammers. |
![](gallery/ba1.jpg)
|

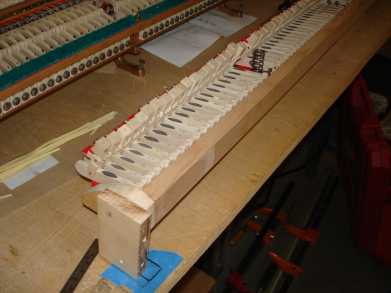

Another view of the new damper underlever assembly (backaction) with the action stack in the background |
![](gallery/ba2.jpg)
|

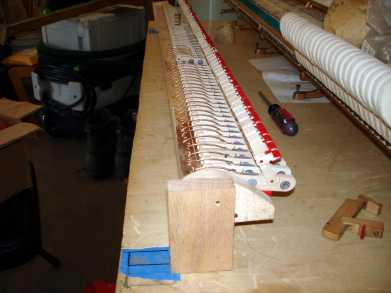

Final view of of the new damper underlever assembly (backaction) after installation of the return springs (note old underlever part at lower right) |
![](gallery/ba3.jpg)
|

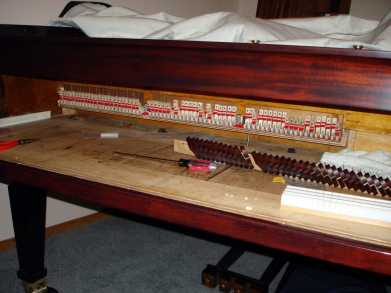

Installing the new damper underlevers assembly (backaction) in the piano |
![](gallery/ba4.jpg)
|

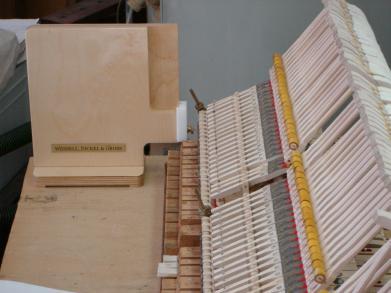

Installing new backchecks |
![](gallery/check_install.jpg)
|

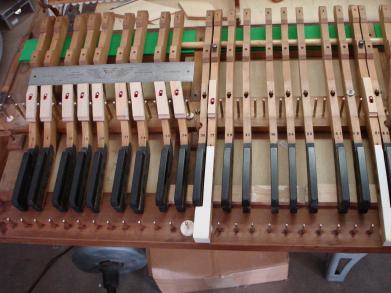

Installing new key buttons |
![](gallery/key_buttons.jpg)
|

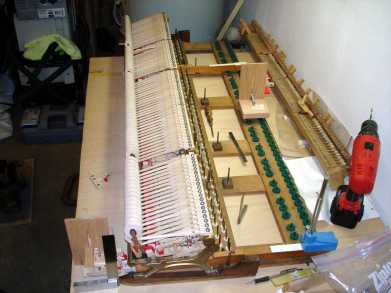

Action stack with new actions parts and hammers on the keyframe without the keys |
![](gallery/stack_frame.jpg)
|

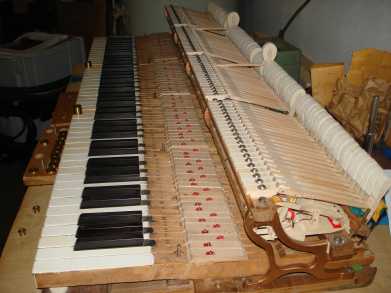

Side view of complete rebuilt piano action |
![](gallery/action_side.jpg)
|

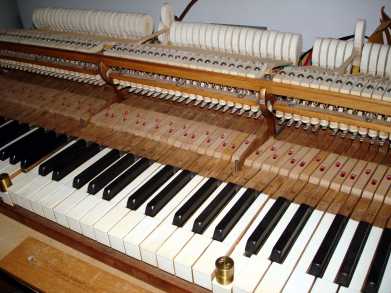

Front view of complete rebuilt action evaluating touch weight, key weight, or down weight |
![](gallery/action_weigh.jpg)
|

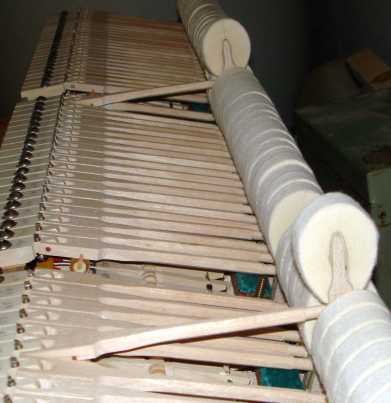

Side view of new hammers and hammer shanks |
![](gallery/hammers.jpg)
|
Dampers with new damper felt are being installed |
![](gallery/damper_install.jpg)
|

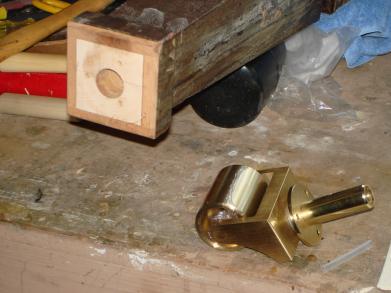

Installing new casters |
![](gallery/new_caster.jpg)
|
|
|
